UNIC URW-546



UNIC URW-546 SPIDER CRANE

Capacity: 4t x 2.5m

The URW-546 offers an optimal combination of working flexibility and heavy lifting power.

This crane is capable of lifting 4 tonnes at 2.5m and features a maximum lifting height of 16m. The UNIC URW-546 sees the addition of a new clean emissions, tier 4 diesel engine, making it fully compliant with the latest emissions regulations. The URW-546 mini crane can be controlled from the driver’s seat or via a radio remote control for precise lifting and placement of loads. At just 1.4m wide, the UNIC URW-546 is ideal for passing through internal doorways and working in confined areas where working space may be limited.

To purchase or hire a UNIC URW-546 spider crane, contact UNIC Cranes Europe today.

UNIC URW-546 – Mini Spider Crane

  • Capacity 4.0t x 2.5m

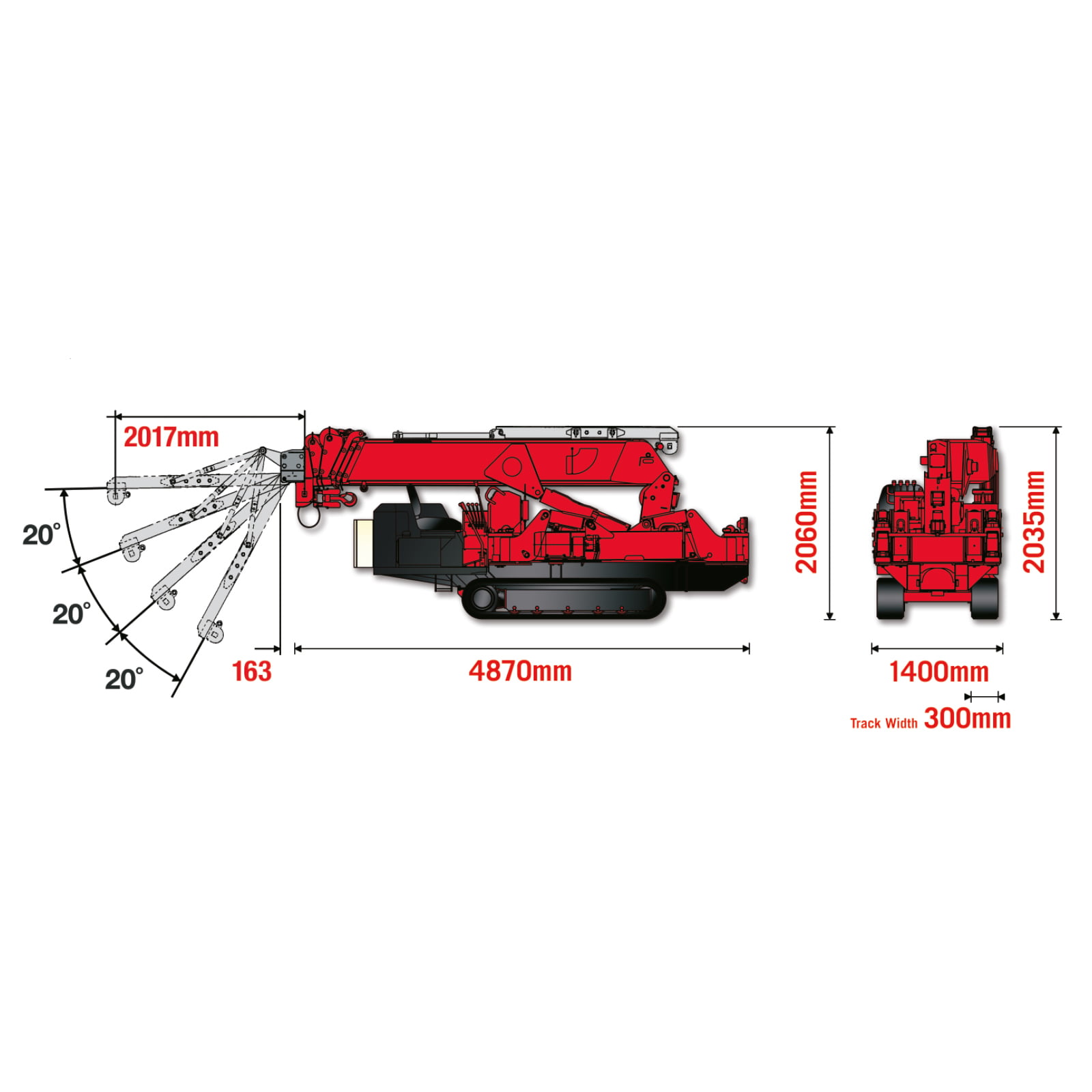

  • Total width 1.4m
  • Max working radius 15.52m

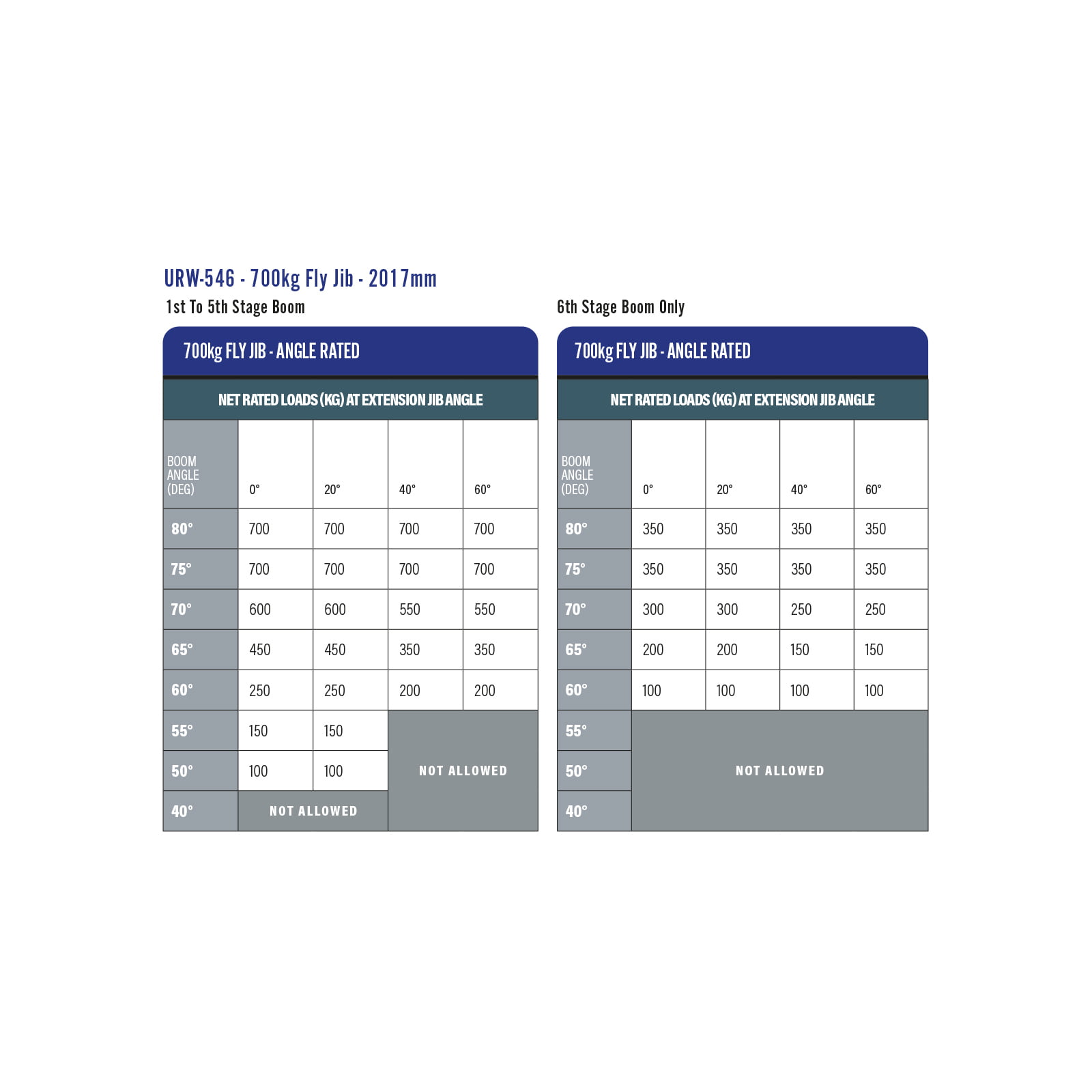

  • Max lifting height 16m (17.79m with fly jib, 18.46m with searcher hook)
  • Max boom length 15.71m
  • Tier 4 diesel-powered and optional mains electric
  • Zero-length increase with the electric option
  • Operator control of outrigger extension
  • Radio remote control as standard
  • Working area limitation
  • Slew limitation (optional)
  • Intelligent throttle activation for economy and ecology
  • Optional low marking tracks
  • Optional radio remote control with feedback display
  • Maximum wind speed for safe use is 36km/h, 22mph or 10m/sRef: MCU546
