UNIC
URW-806
8.0t x 3.0m
New for 2025, the UNIC URW-806 mini spider crane is set to replace the industry-proven UNIC URW-706, offering enhanced performance and advanced features for even the most demanding lifting tasks. With an impressive 8,000kg maximum lifting capacity at 1.7m, the URW-806 takes everything you loved about the URW-706 and upgrades it with more power and versatility, all while retaining its compact size for operation in tight, confined spaces. [read more]
Features
- Capacity 8.0t x 1.7m / 6.0t x 3.0m

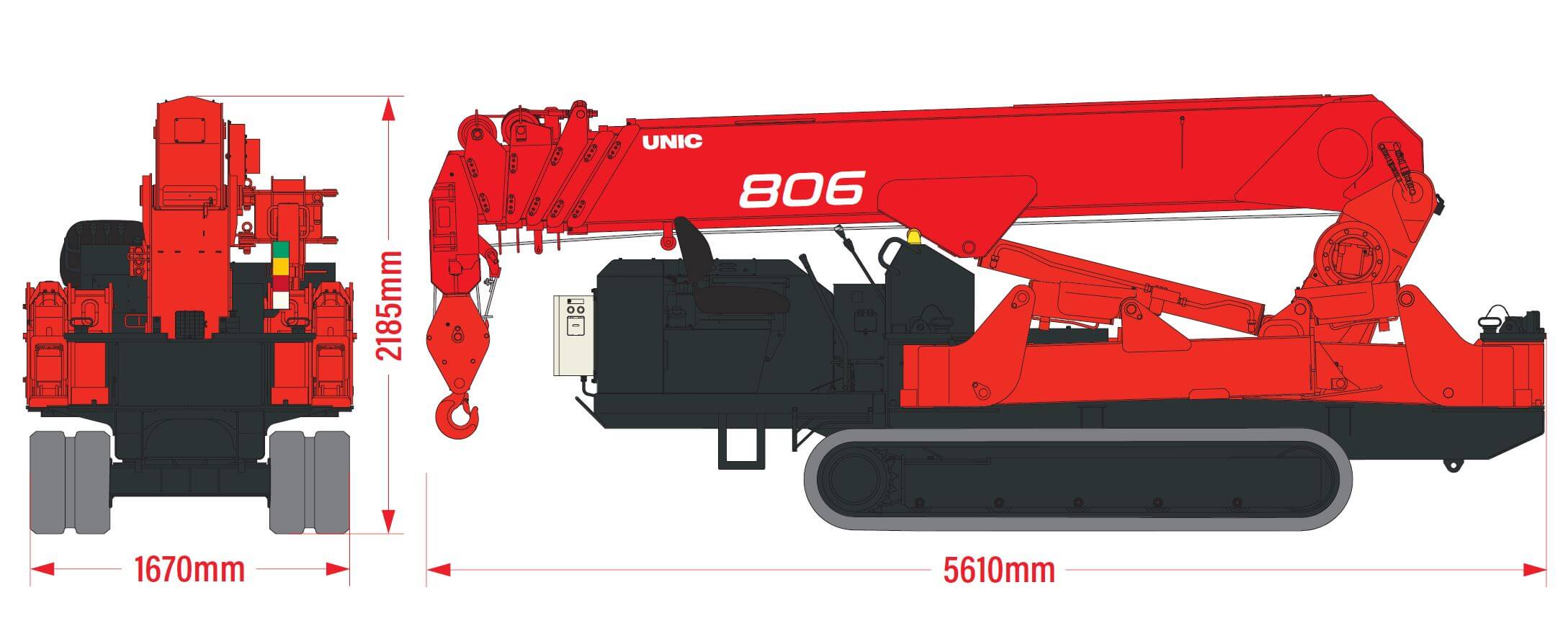

- Total width 1.67m
- Max working radius 18.6m
- Max lifting height 19.5m (22.7m with second stage fly jib)
- Max boom length 19.2m
- Diesel powered and optional mains electric
- Zero length increase with electric option
- Radio remote control as standard
- Working area limitation
- Stowable fly (extension) jib (optional)
- Searcher hook (optional)
- Slew limitation (optional)
- Intelligent throttle activation for economic fuel consumption
- Optional low marking tracks
- Optional radio remote control with feedback display
- Maximum wind speed for safe use is 36km/h, 22mph or 10m/s
Description
The UNIC URW-806 benefits from a Scanreco colour screen remote control, which provides operators with full feedback, making it easier than ever to control the crane and monitor its performance in real time. The crane features an optional, variable footprint system, which further enhances its adaptability for work in restricted spaces, giving it increased flexibility without compromising stability.
In addition, the UNIC URW-806 is compatible with the new Lithium UNIC ECube system, offering the ability to “charge while in use.” This means you get continuous, uninterrupted operation with zero emissions and low noise, making the URW-806 perfect for working in sensitive environments. Its environmentally friendly operation ensures minimal disruption, while its powerful lithium battery allows for long-lasting performance on every lifting project.
With a lifting height of 19.5m, is one of the biggest capacity cranes in the UNIC range and is just 1,600mm wide, making it narrow enough to gain access through a standard double doorway and compact enough to operate in confined and restricted spaces. It’s a true example of power and versatility in a compact, easy-to-manoeuvre design.
For those requiring even more flexibility, the UNIC URW-806 offers an optional searcher hook and 3.1m fly jib, which gives it a maximum hook height of 22.7m. This makes the crane even more versatile for tasks that require extended reach.
